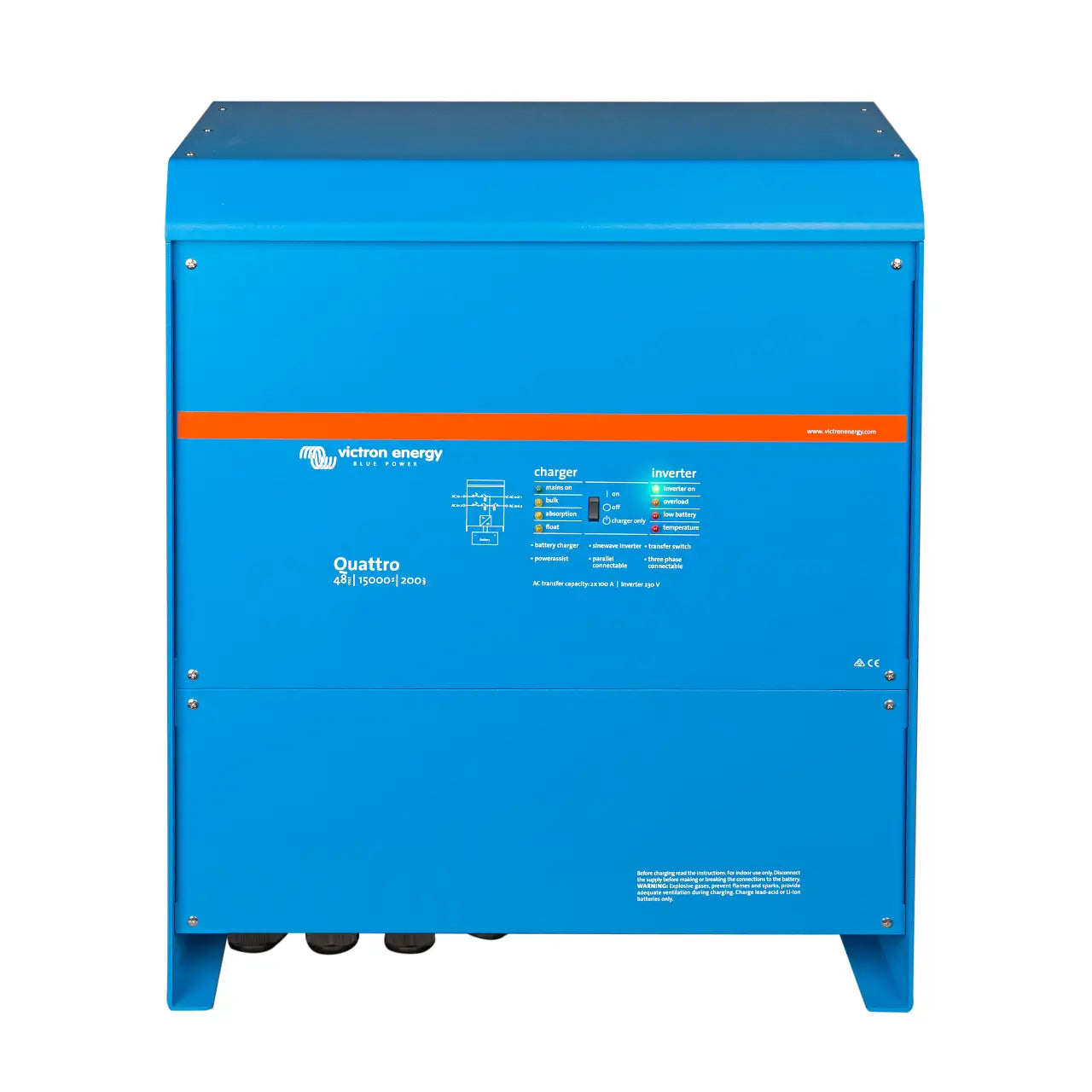

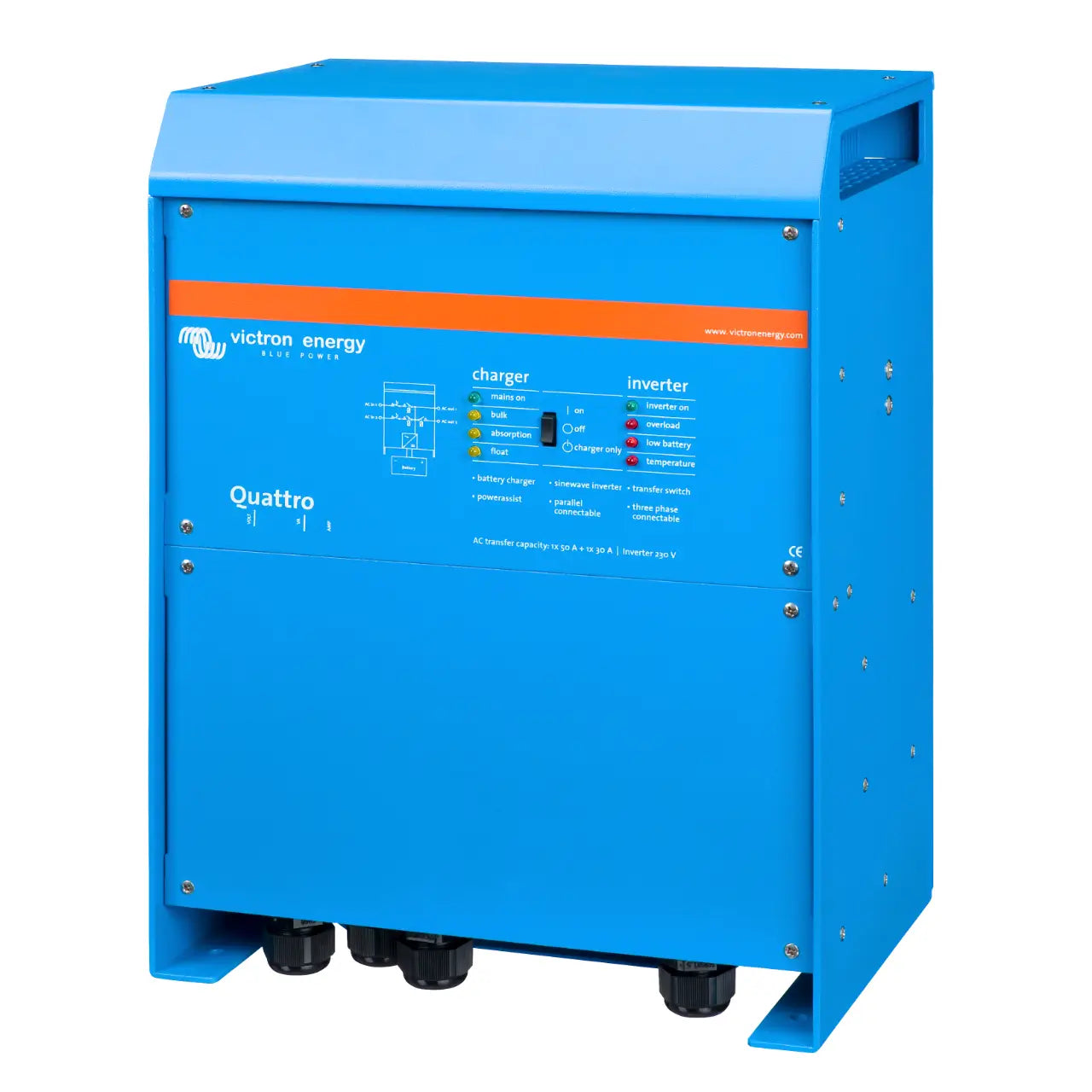

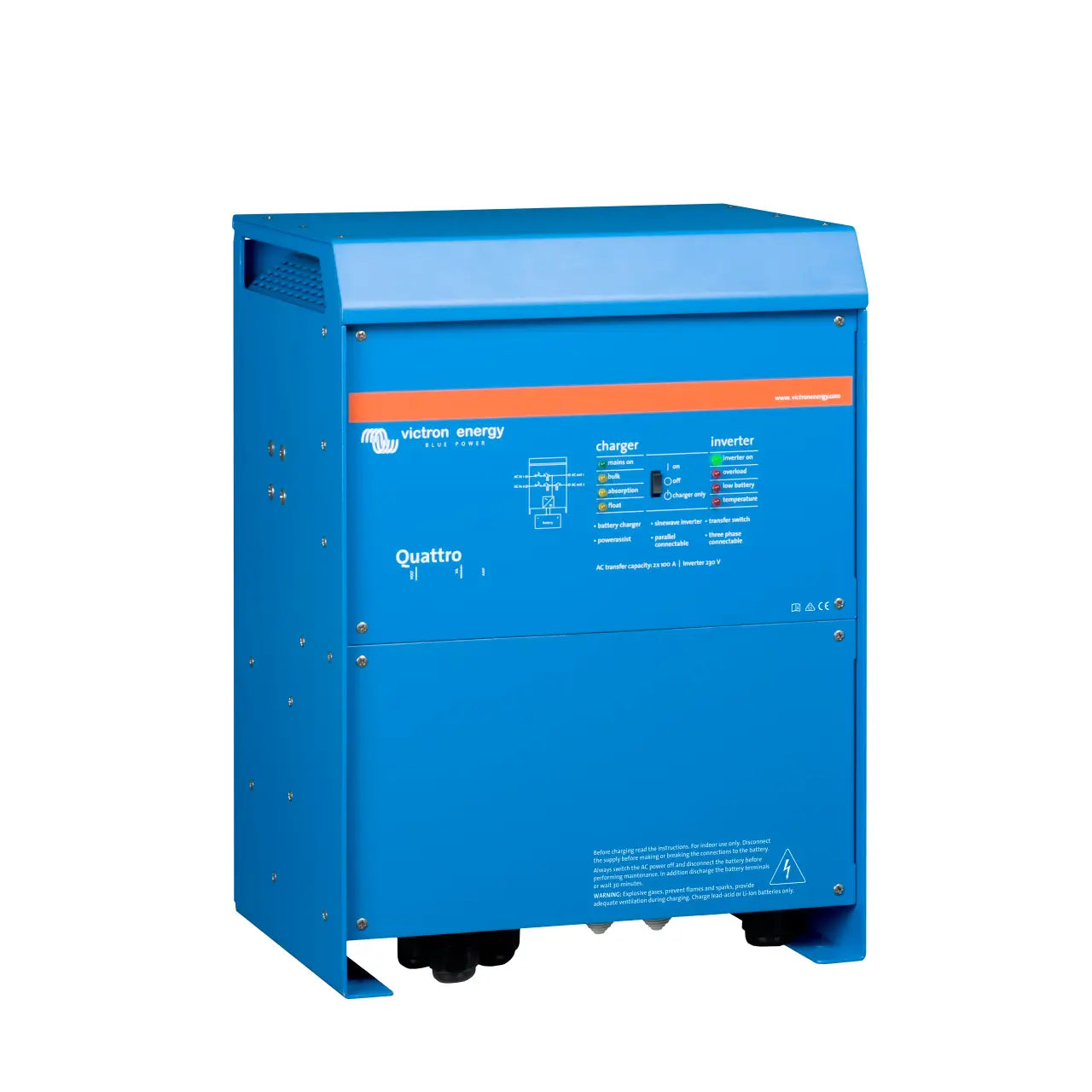

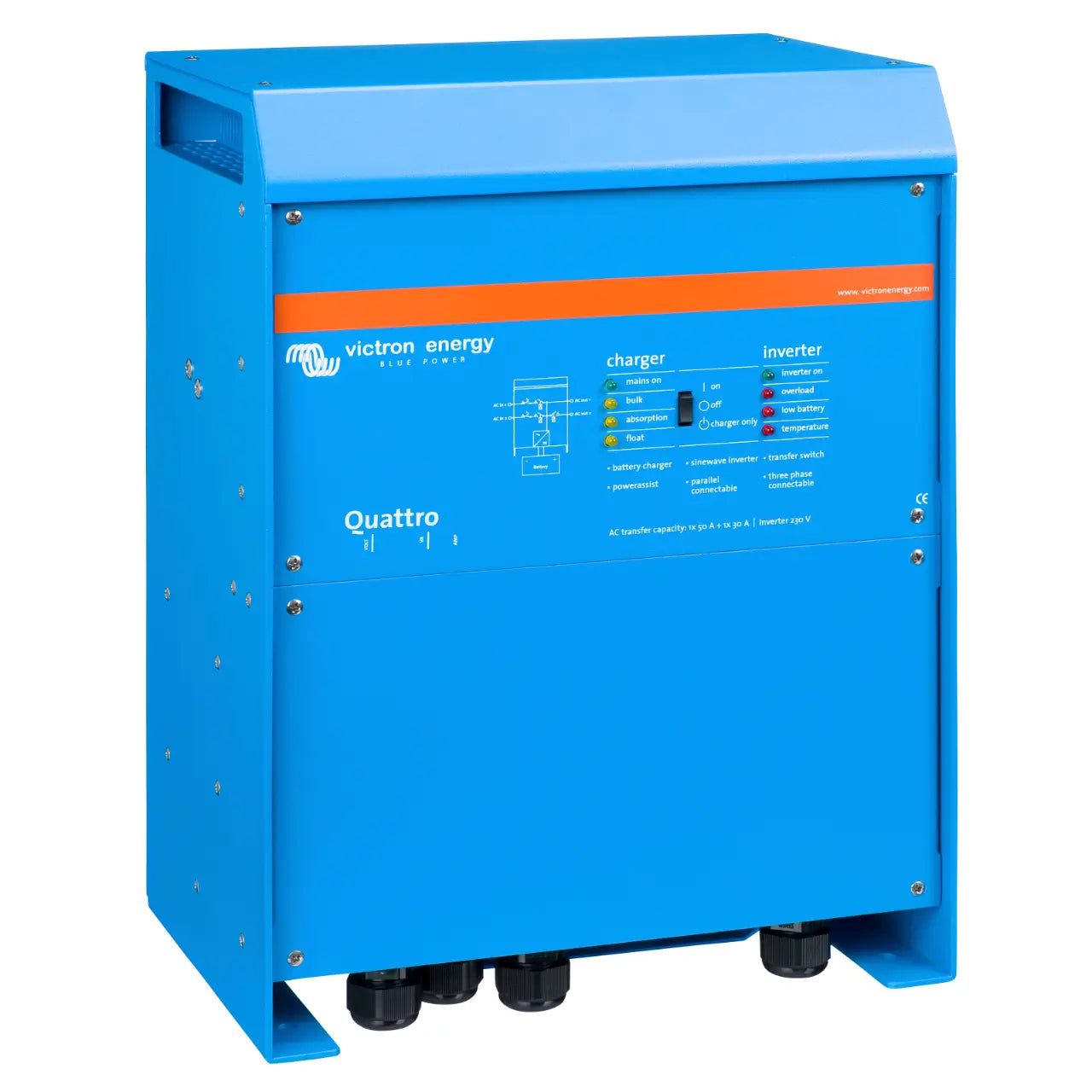

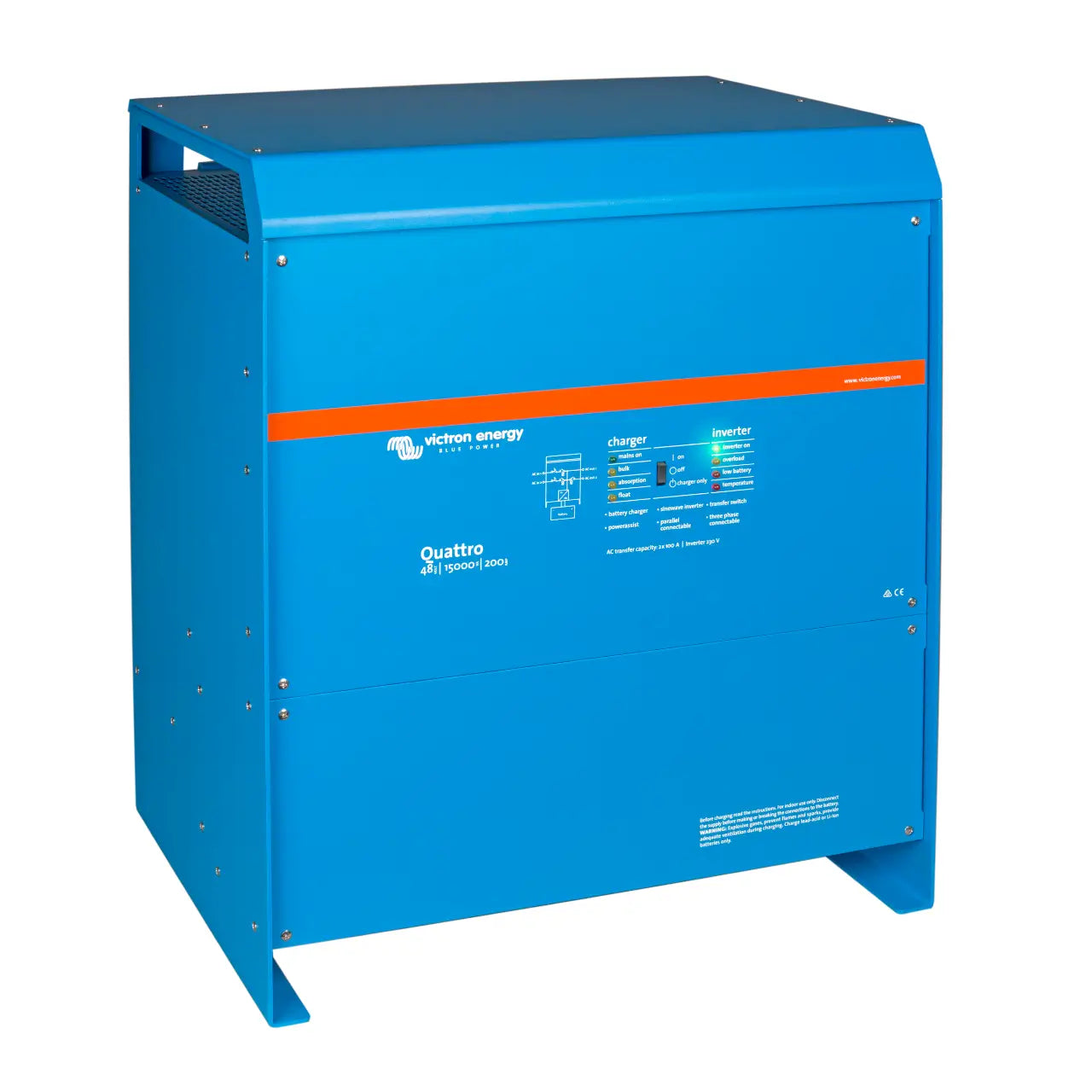

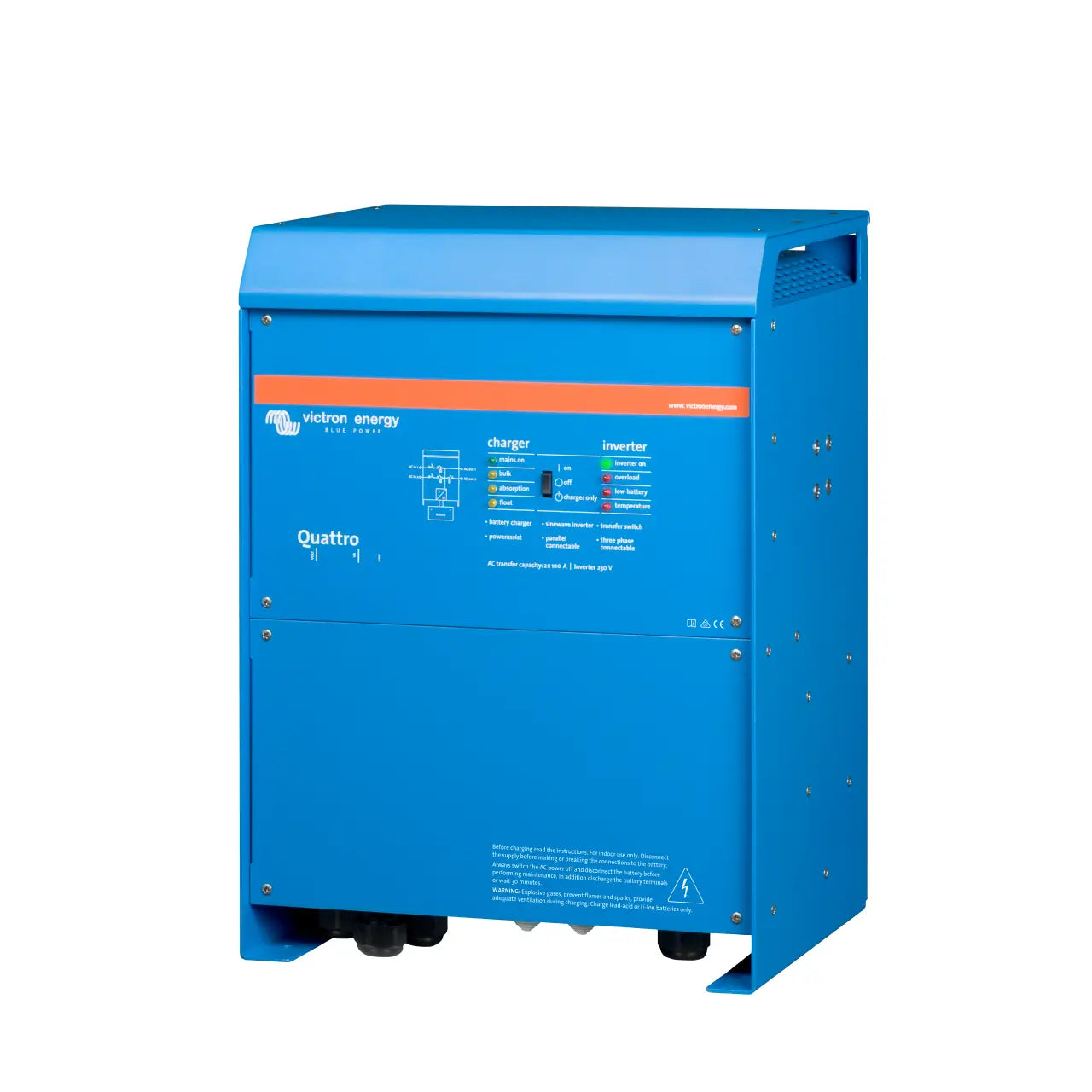

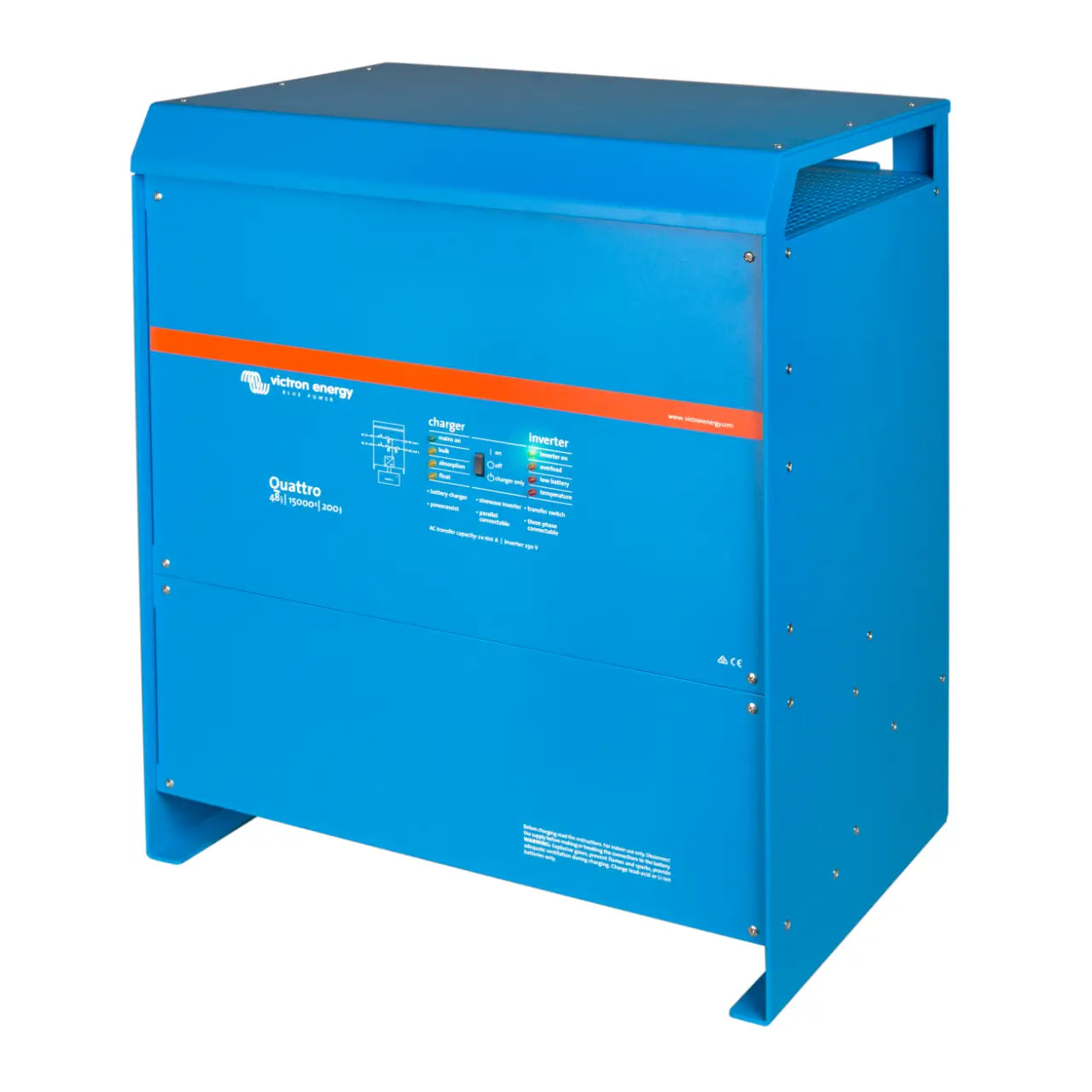

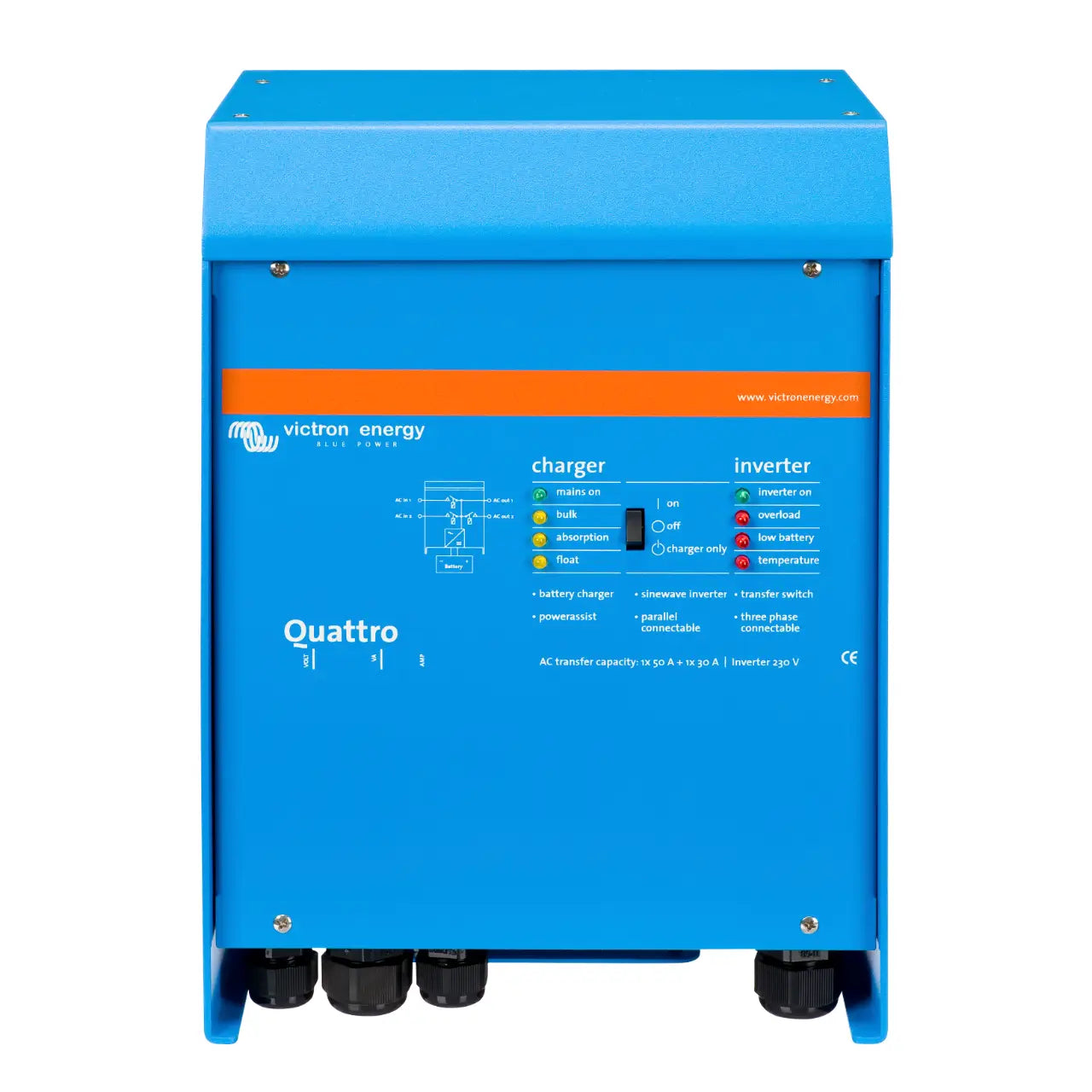

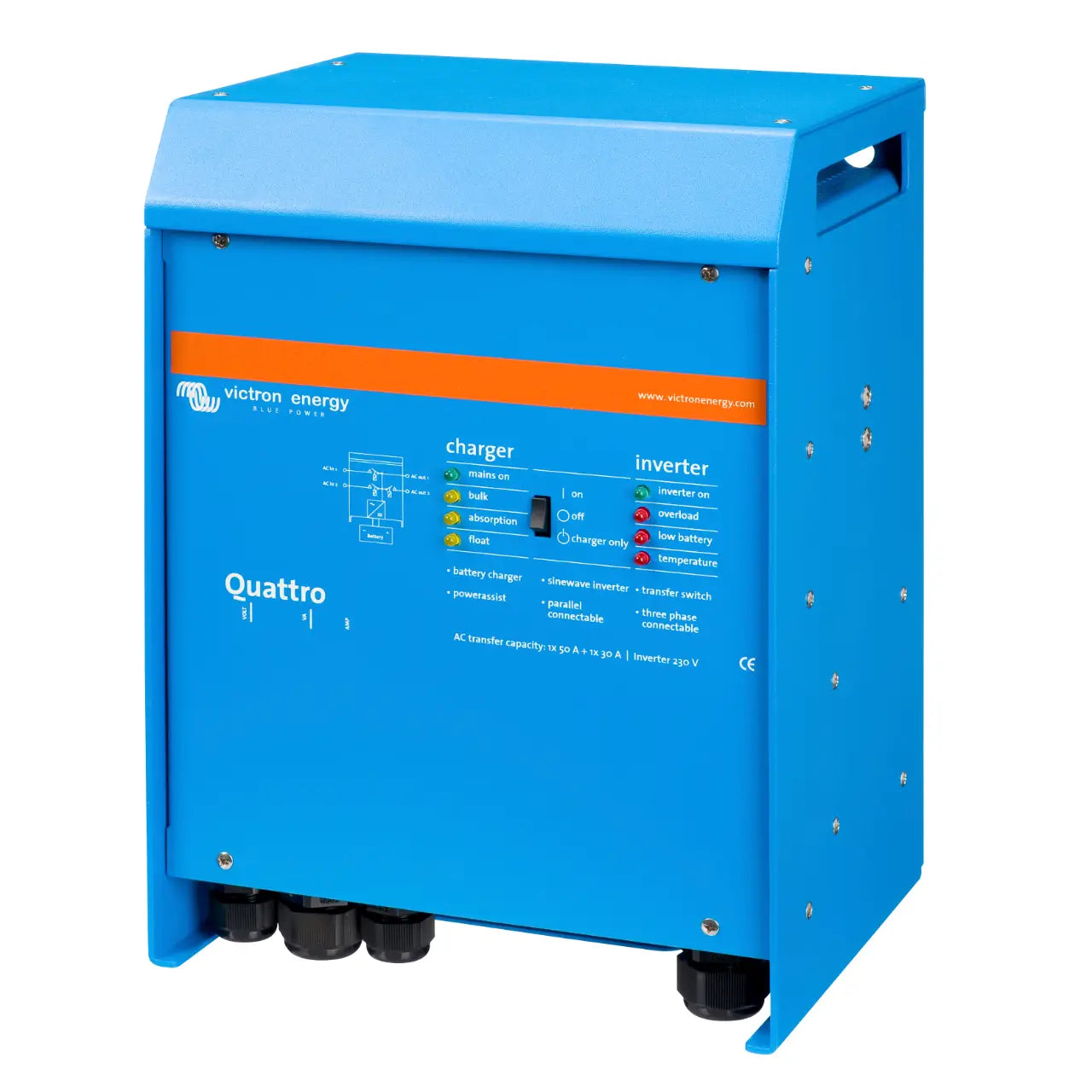

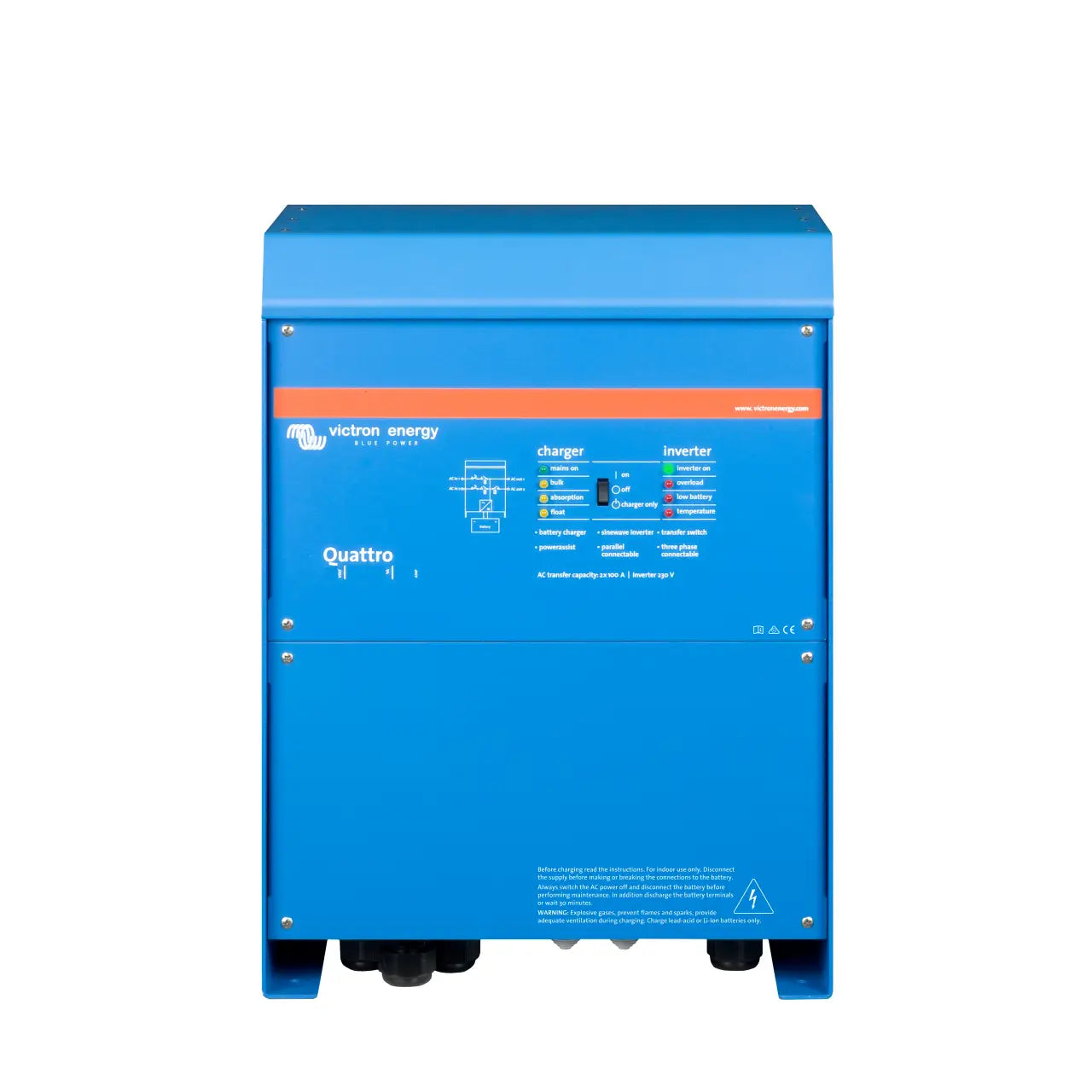

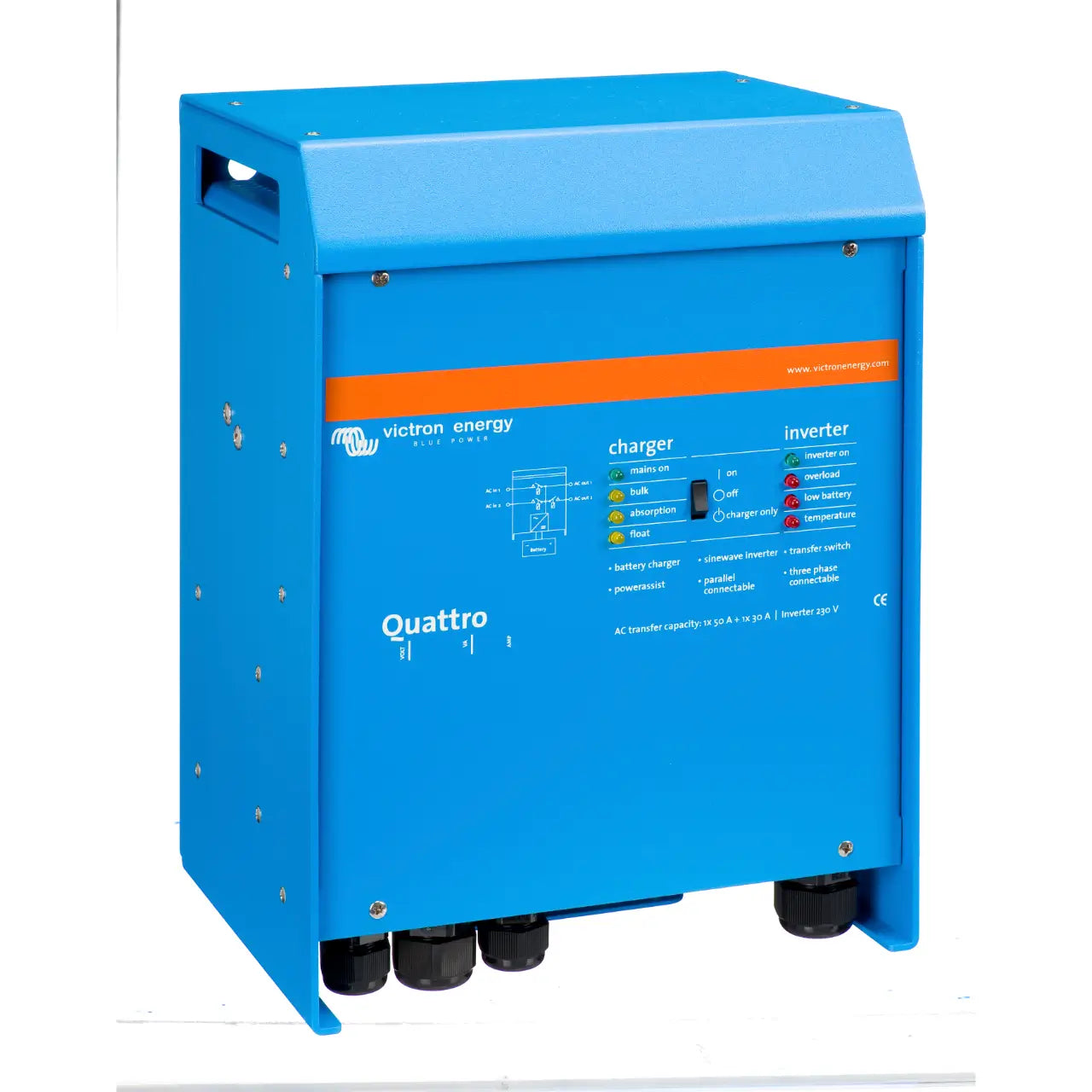

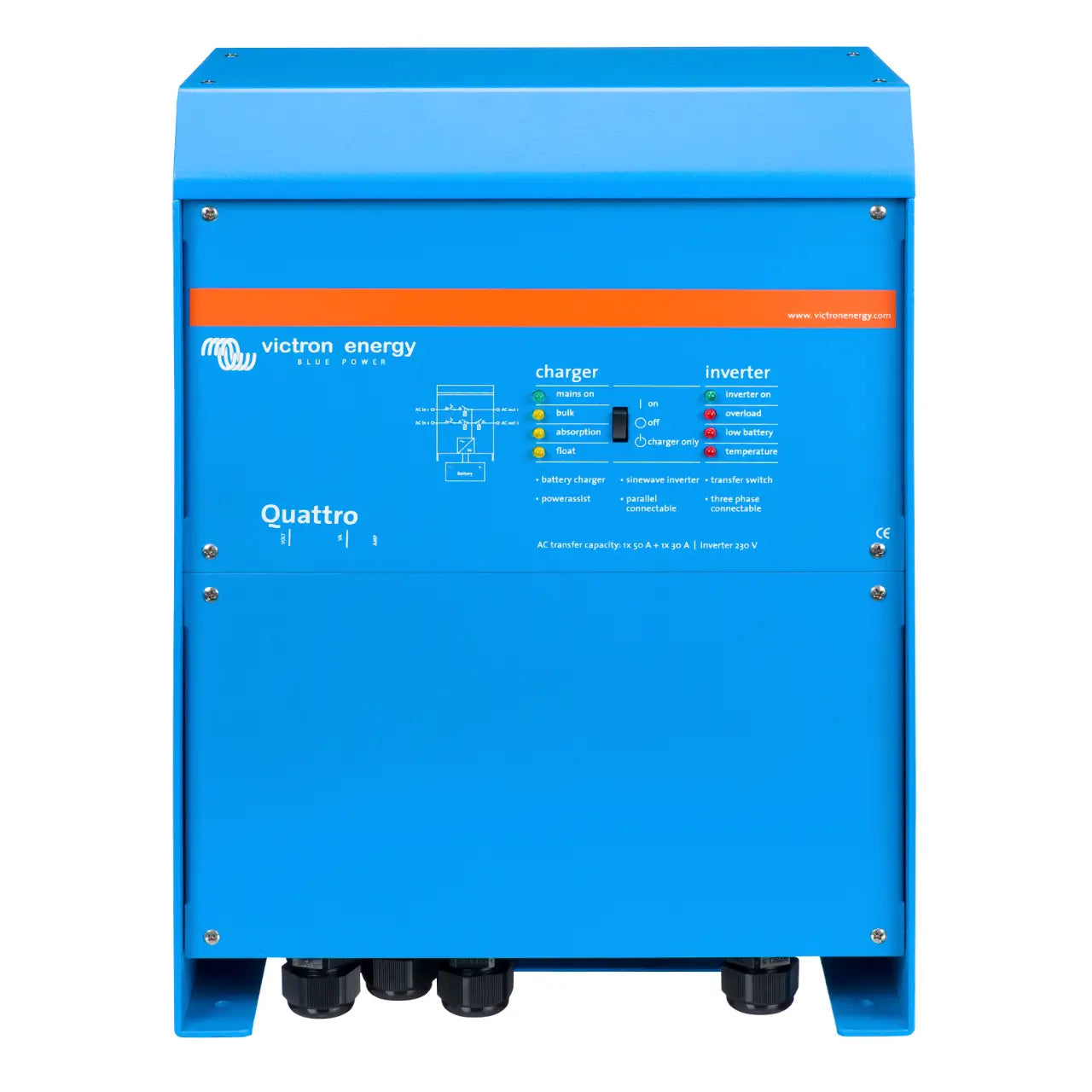

Victron Energy Quattro
Victron Energy Quattro
Estimated Delivery: 1-3 working days, with free delivery
The Quattro can be connected to two independent AC sources, for example, shore-side power and a generator, or two generators. The Quattro will automatically connect to the active source. The main output has no-break functionality. In the event of a grid failure, or shore or generator power being disconnected, the Quattro takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption. The second output is live only when AC is available on one of the inputs of the Quattro. Loads that should not discharge the battery, such as air-conditioning or a water heater can be connected to this output.
Features
Unique PowerAssist feature. The Quattro will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shoreside supply with power taken from the battery.
Virtually unlimited power thanks to parallel operation.Up to 6 Quattros can operate in parallel to achieve higher power output. Three-phase or split-phase operation is also possible. Please check our datasheets to see which models have paralleling, three-phase and split phase capabilities.
Remote Monitoring and Control.Monitor and control your Quattro and system or systems locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, via the required Color Control GX or Venus GX, from adjusting your Quattro to setting a Geofence for hire vehicles and more...
Split phase and three phase capability.Two units can be configured for split phase, and three units can be configured for three-phase output. But that’s not all: up to 6 sets of three units can be parallel connected to provide 144kW / 180kVA inverter power and more than 2500A charging capacity. For more detail please enter parallel in the search box on our website.
Solar energy: AC power is available even during a grid failure.The Quattro can be used in off-grid as well as grid-connected PV and other alternative energy systems. Loss of mains detection software is available.
System configuring.In the case of a stand-alone application, if settings have to be changed, this can be done in a matter of minutes with a DIP switch setting procedure.
Parallel and three-phase applications can be configured with VE.Bus Quick Configure and VE.Bus System Configurator software.
Off grid, grid interactive and self-consumption applications, involving grid-tie inverters and/or MPPT Solar Chargers can be configured with Assistants (dedicated software for specific applications).
Specifications
Specifications
Please scroll across the table to view all the columns.
12V 3000VA | 12V 5000VA | 24V 3000VA | 24V 5000VA | 24V 8000VA | 48V 5000VA | 48V 8000VA | 48V 10000VA | 48V 15000VA | |||
---|---|---|---|---|---|---|---|---|---|---|---|
Voltage | 12V | 12V | 24V | 24V | 24V | 48V | 48V | 48V | 48V | ||
Cont. Output Power at 25°C |
3000VA / 2400W |
5000VA / 4000W |
3000VA / 2400W |
5000VA / 4000W |
8000VA / 6400W |
5000VA / 4000W |
8000VA / 6400W |
10000VA / 8000W |
15000VA / 12000W |
||
Peak Power | 6000W | 10000W | 6000W | 10000W | 16000W | 10000W | 16000W | 20000W | 25000W | ||
Output Voltage |
230 VAC ± 2 % | ||||||||||
Charge Current House Battery |
120A | 220A | 70A | 120A | 200A | 70A | 110A | 140A | 200A | ||
Max. Efficiency |
93% | 94% | 94% | 94% | 94% | 95% | 94% | 96% | 96% | ||
Bluetooth Compatible? |
No | ||||||||||
Max. AC Input Current |
32A | 50A | |||||||||
Protection Category |
IP21 | ||||||||||
Dimensions (H x W x D) |
362 x 258 x 218 mm | 470 x 350 x 280 mm | 362 x 258 x 218 mm | 444 x 328 x 240 mm | 470 x 350 x 280 mm | 444 x 328 x 240 mm | 470 x 350 x 280 mm | 470 x 350 x 280 mm | 572 x 488 x 344 mm | ||
Weight | 19 kg | 34 kg | 19 kg | 30 kg | 45 kg | 30 kg | 45 kg | 51 kg | 72 kg | ||
Warranty | 5 years |
12V 3000VA | 12V 5000VA | 24V 3000VA | 24V 5000VA | 24V 8000VA | 48V 5000VA | 48V 8000VA | 48V 10000VA | 48V 15000VA | |||
---|---|---|---|---|---|---|---|---|---|---|---|
Voltage | 12V | 12V | 24V | 24V | 24V | 48V | 48V | 48V | 48V | ||
Cont. Output Power at 25°C |
3000VA / 2400W | 5000VA / 4000W | 3000VA / 2400W | 5000VA / 4000W | 8000VA / 6400W | 5000VA / 4000W | 8000VA / 6400W | 10000VA / 8000W | 15000VA / 12000W | ||
Peak Power | 6000W | 10000W | 6000W | 10000W | 16000W | 10000W | 16000W | 20000W | 25000W | ||
Output Voltage | 230 VAC ± 2 % | ||||||||||
Charge Current House Battery | 120A | 220A | 70A | 120A | 200A | 70A | 110A | 140A | 200A | ||
Maximim Efficiency |
93% | 94% | 94% | 94% | 94% | 95% | 94% | 96% | 96% | ||
Protection Category |
IP21 | ||||||||||
Dimensions (H x W x D) |
362 x 258 x 218 mm | 470 x 350 x 280 mm | 362 x 258 x 218 mm | 444 x 328 x 240 mm | 470 x 350 x 280 mm | 444 x 328 x 240 mm | 470 x 350 x 280 mm | 470 x 350 x 280 mm | 572 x 488 x 344 mm | ||
Weight | 19 kg | 34 kg | 19 kg | 30 kg | 45 kg | 30 kg | 45 kg | 51 kg | 72 kg | ||
Warranty | 5 years |
To view a more detailed specification table, please go to the 2nd page of the datasheet.
