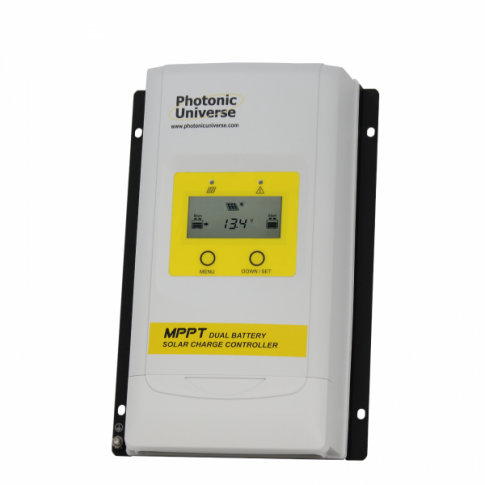

High-Efficiency 20A Dual Battery MPPT Solar Charge Controller With LCD Display for Solar Panels Up to 260W (12V Battery System) / 520W (24V Battery System)
High-Efficiency 20A Dual Battery MPPT Solar Charge Controller With LCD Display for Solar Panels Up to 260W (12V Battery System) / 520W (24V Battery System)
Estimated Delivery: 1-3 working days, with free delivery
Brand new high efficiency 20A 12V/24V Dual Battery MPPT solar charge controller / regulator for independent charging of two 12V or two 24V batteries or battery banks. For solar panels up to 260W (12V system) / 520W (24V system) up to 100V.
Features
Dual Battery Charging:
This advanced 20A 12V/24V dual battery solar controller uses advanced MPPT technology to charge two independent batteries or battery banks. The main battery is charged at high power, while a secondary battery is given a trickle charge of up to 1A. This makes it a perfect solar controller for a campervan, motorhome, boat or any other system with 2 batteries (e.g. engine and leisure battery). The main battery will be charged with a majority of the power, whilst the second battery will be trickle-charged to keep it topped up and ready for use.
Maximum Power Point Tracking (MPPT) Technology:
MPPT technology ensures the maximum efficiency of your solar system and significantly outperforms standard PWM solar controllers. Another benefit of MPPT technology is the wide solar input voltage range - this controller can work not only with standard off-grid 12/24V solar panels but also with multiple panels with voltages up to 100V. The maximum combined solar input power allowed for this controller is 260W for a 12V battery system or 520W for a 24V system. In particular, this controller will significantly increase the efficiency of a solar system where the solar panel voltage is much higher than the battery voltage (e.g. charging a 12V battery with a 36V solar panel).
Full system protections:
This charge controller features a comprehensive set of electronic protection functions to prevent reverse current at night (from the battery back to the solar panel), over-charging, short circuits, reverse polarity and more. The solar controller case is water resistant to a rating of IP33 when installed, for protection against sprays of water at up to 60 degrees from vertical.
Advanced Battery Compatibility:
Unlike many other less advanced solar charge controllers, this model is 100% compatible with a broad range of battery types for the main battery, such as Gel, AGM, Lead-Acid Flooded, and Lithium (LiFePO4 or Li-NiCoMn) batteries.
Advanced system functionality:
- The controller automatically recognises 12/24V battery systems (note a battery should always be connected to the controller first before connecting a solar panel, system voltage recognition is based on a secondary battery)
- Built-in LCD screen shows real-time charging parameters such as voltage, current (separately for the solar panel and each battery), battery state of charge, and accumulated charging energy
- Easy-to-use buttons allow the user to manually select the battery type (sealed, flooded, gel or Lithium), change the temperature units, and reset the in-built counters (charging energy, min/max voltages)
- When not in use, the system automatically goes into a low power mode, reducing standby consumption when there is no solar power available, such as when the vehicle is parked in a garage
- A current limiting function (20A) allows the possibility of adding more solar panels to your solar system in the future
This model is also compatible with a remote meter MT11 with an LCD screen, which displays system performance information and allows the user to manually adjust parameters and load settings from an easy-to-use and install remote screen.
In addition to the built-in temperature sensor and intelligent heat-dissipating design of this controller, there is also a socket for connecting a remote temperature sensor, which can be attached directly to the battery to measure the battery temperature more precisely. This allows the system to optimise the charging process for lead acid batteries or provide low-temperature protection for lithium batteries.
Controller Specifications
- The most advanced MPPT technology to ensure high efficiency (>95%) of your solar system
- Fully automated operation and auto 12/24V selection
- 3 pairs of terminals (solar panel, battery 1, battery 2) for wires up to 16mm2
- Maximum solar panel voltage 100V
- Maximum solar panel power 260W (12V) / 520W (24V)
- Temperature sensor for automatic compensation (-3mV/°C/2V)
- Comprehensive electronic protection features
- Communication port: RS485 interface
- Grounding: negative common ground
- Current limiting function (20A)
- Self-consumption: <26mA
- Working temperature: -30°C to +80°C
- Size: 243.7 x 158 x 63 mm
- Mounting dimensions: 180 x 149 mm
- Weight: 1.1 kg
- Multiple mounting holes (5mm diameter) for ease of installation
The product is covered by 1-year manufacturer warranty.
Documents
This unit comes with a detailed user manual which explains wiring and operations. Note: The two battery banks for this controller must have the same rated voltage (12V or 24V). The second battery should be connected first, before the primary battery, as this is used for the automatic system voltage recognition.
